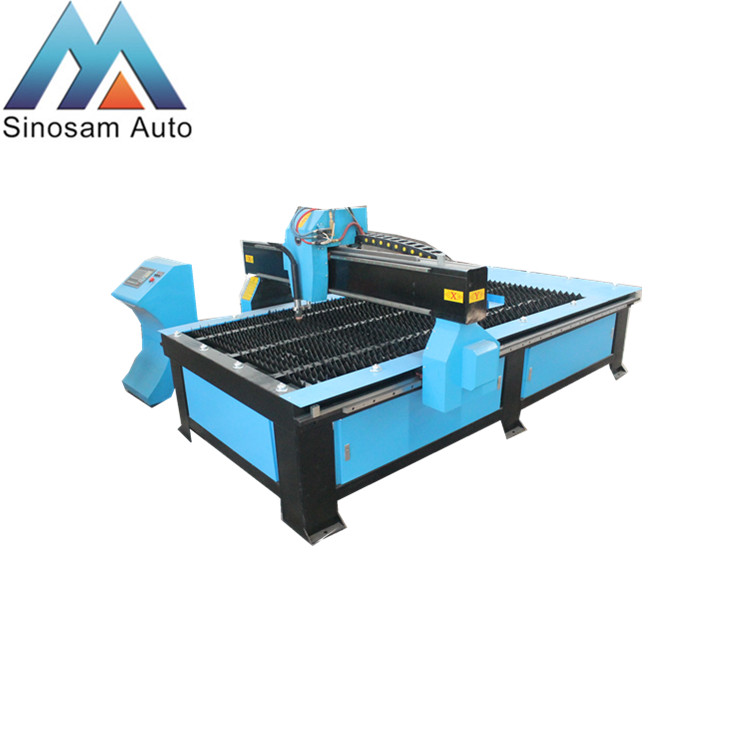

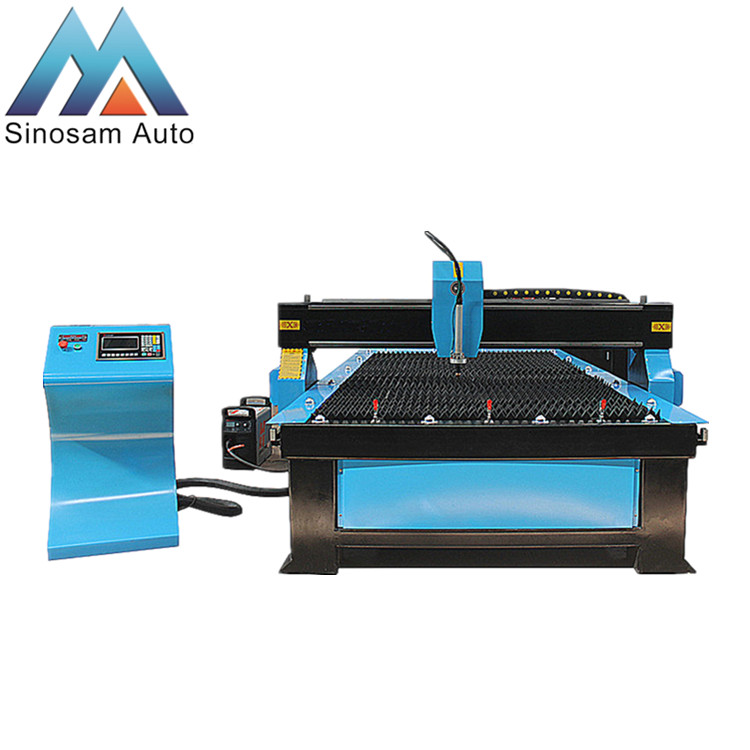

Sam CNC plasma board cutting machine flame cutting machine SC-D1530
- Brand: sinosam
- Type: SC-D1530
- Price: $4600 RMB
- Promotion: $4600 RMB ( 0 Customers Bought)
Sam CNC plasma board cutting machine flame cutting machine SC-D1530
Advantages
1. Beams adopt welding structure with high precision and small inertia. The machine body is with high precision processing to prevent deformation. The support for workpiece is cutting by laser machine.
2. Transmission structure is high precision rack and special reducer, and adopt Taiwan linear rail to ensure high precision and high speed.
3. The drive system adopts USA chip control and high precision motor providing AC power with big torque to ensure running smoothly under the high speed.

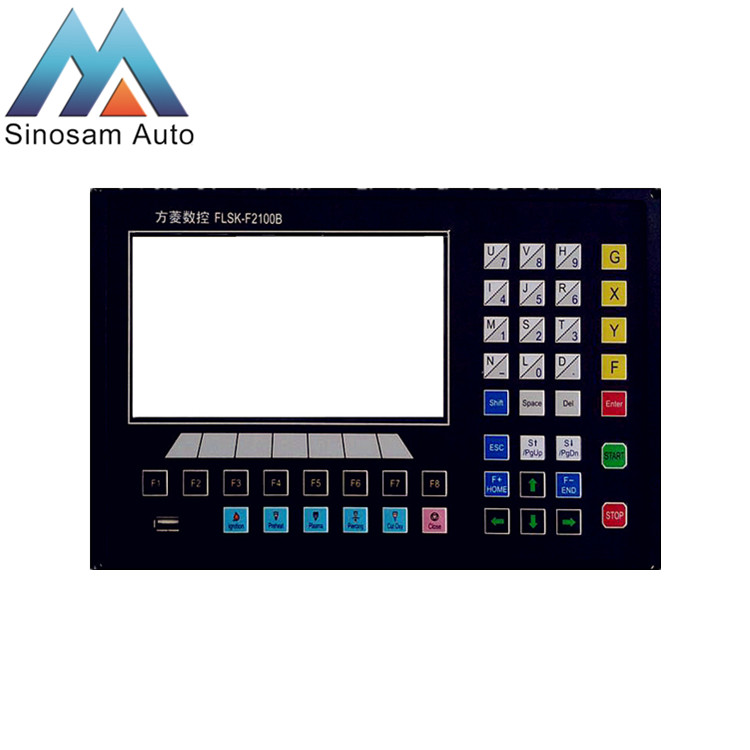

4. The control system is 7’ screen, with English and Chinese language. The machine adopt high precision arc pressure automatic THC.
Model
SC-D1530P Plasma Cutting Machine
Cutting Material
Steel
Machine size
3600mm(L)*2300mm(W)*1300mm(H)
Cutting thickness
≤32mm, 20mm is best.
Working range
1500mm*3000mm
Effective Cutting Width (X axis)
1500mm
Effective Cutting Length (Y axis)
3000mm
Cutting Mode
Plasma
CNC system
FangLing
Move speed
0-18000mm/min
Plasma cutting speed
0-15000mm/min
Cutting torch lifting distance
200mm
Speed setting error
≤±5%
Running accuracy
≤0.005mm

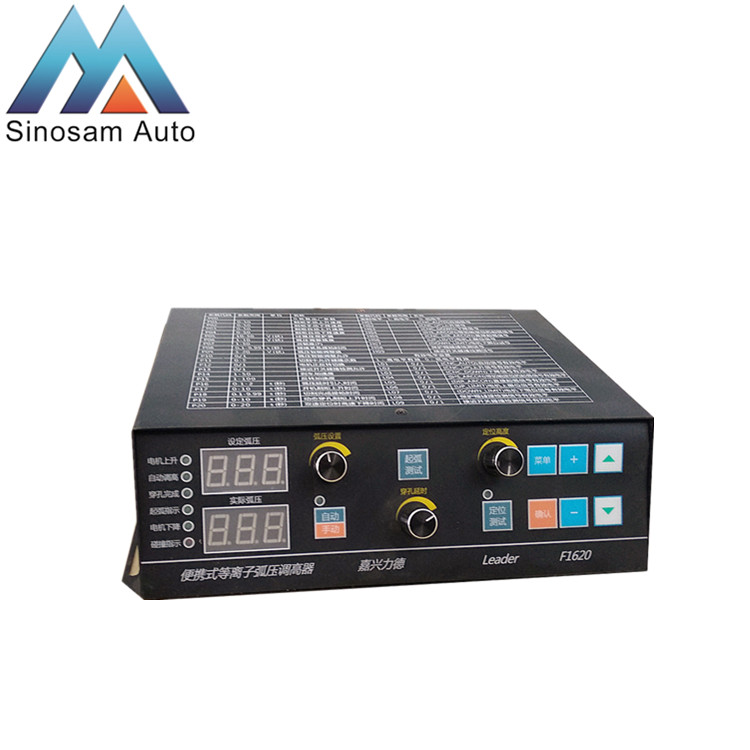

High Control
Are Pressure Auto THC
Cutting gas
Oxygen+ethyne(propane)
Gas pressure
0.4-0.8 Mpa

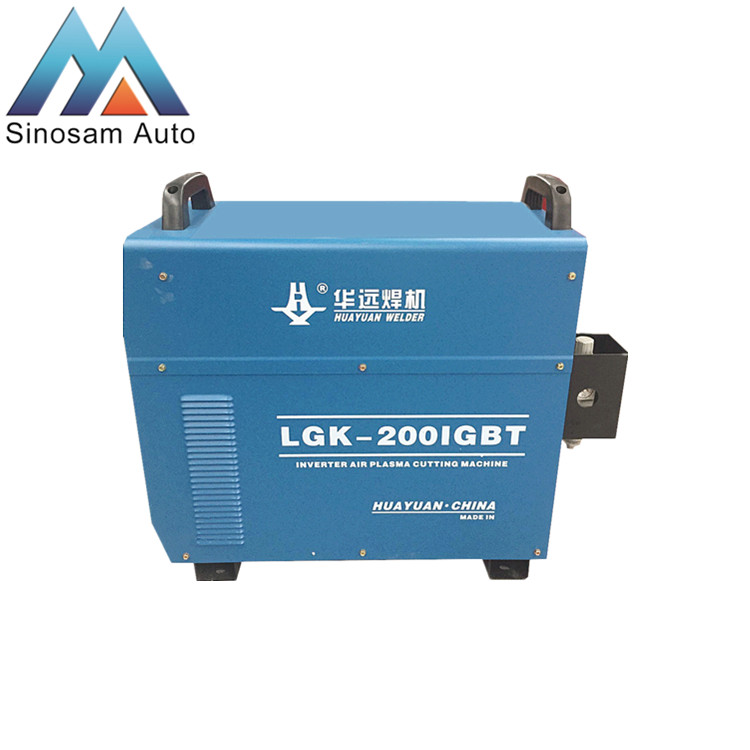

Power
Huayuan 200A
Power Source
220V/380V 50HZ

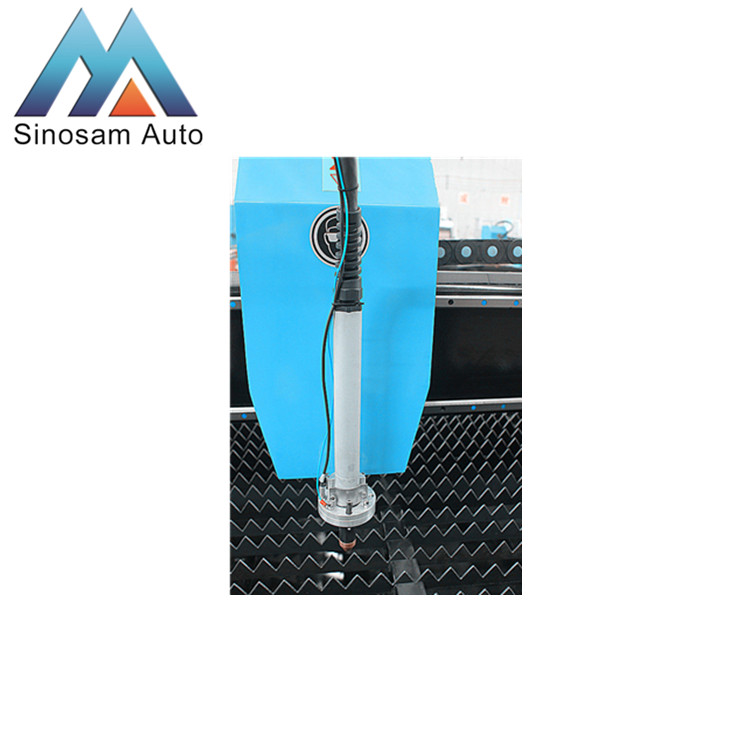

Number of cutting torch
One set of plasma cutting touch
Support software
Starcam, Fastcam.
Machine Specification
7 inch control screen. Easy operationg. (including English/Chinese)
200A Power Assurance.
Are Pressure Auto THC
Components
|
No. |
Item |
Brand |
Brand Original |
|
(1) |
Motor |
Chinese brand |
China |
|
(2) |
plasma cutter |
Chinese brand |
China |
|
(3) |
Welding power supply |
HUAYUAN |
China |
|
(4) |
CNC system |
FANGLING |
China |
|
(5) |
Support software |
STARCAM/ FASTCAM. |
Italy |
|
(6) |
Other |
Chinese brand |
China |
Packaging
Our services
1. Free training.
2. Guarantee for 1 year, Lifelong maintenance.
3. Free software support and upgrades.
Company Information
Shandong Sam Automation Equipment Co.,Ltd.located in jinan city, shandong province. Sinosam is a collection research and development, production, sales, services, information consulting, which integrates professional high-tech enterprises.
specialized in the automation of the plant process. The main products are industrial robots, clean robots, intelligent logistics equipment, Agv automatic guided vehicles, rail transit equipment, intelligent service robots, automated assembly testing lines, energy-saving environmental protection equipment, energy equipment and machinery automation etc. Expect your good news.
FAQ
Q: How to install this machine?
A: It is easy to be installed, we have the video for your reference. and we can video online.
Q: What kind of delivery can you support?
A: FOB, CIF. EXW. and so on.
