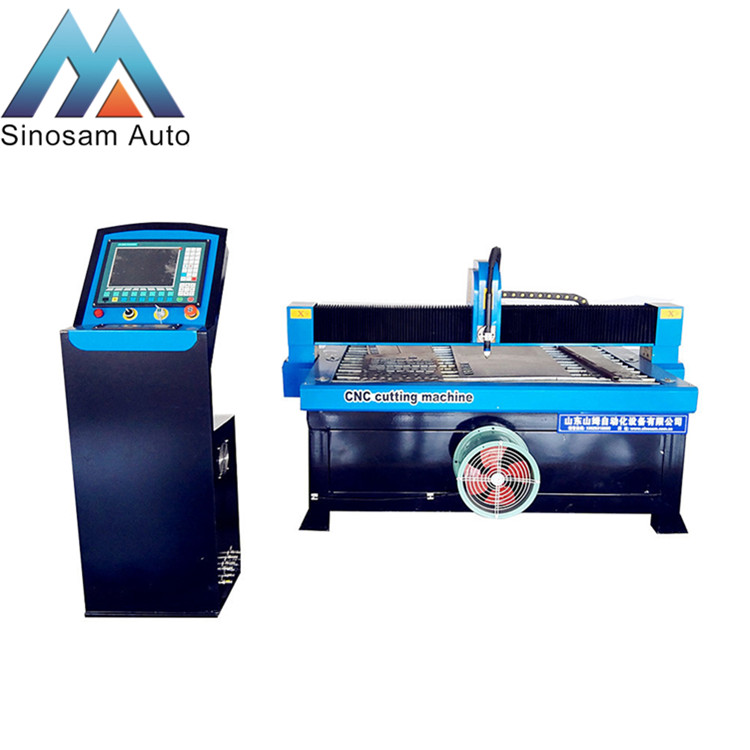

Table plasma cutting machine CNC plate cutting machine SC-1325P
- Brand: sinosam
- Type: SC-1325P
- Price: $4300 RMB
- Promotion: $4300 RMB ( 0 Customers Bought)
Table plasma cutting machine CNC plate cutting machine SC-1325P
Advantages
1. Beams adopt welding structure with high precision and small inertia. The machine body is with high precision processing to prevent deformation. The support for workpiece is cutting by laser machine.
2. Transmission structure is high precision rack and special reducer, and adopt Taiwan linear rail to ensure high precision and high speed.
3. The drive system adopts USA chip control and high precision motor providing AC power with big torque to ensure running smoothly under the high speed.
4. The control system is 7’ screen, with English and Chinese language. The machine adopt high precision arc pressure automatic THC.
|
Model |
SC-1325P Plasma Cutting Machine |
|
Cutting Material |
Steel |
|
Machine size |
2800mm(L)*1500mm(W)*800mm(H) |
|
Cutting thickness |
≤32mm, 20mm is best. |
|
Working range |
1300mm*2500mm |
|
Effective Cutting Width (X axis) |
1300mm |
|
Effective Cutting Length (Y axis) |
2500mm |
|
Cutting Mode |
Plasma |
|
CNC system |
FangLing |
|
Move speed |
0-18000mm/min |
|
Plasma cutting speed |
0-15000mm/min |
|
Cutting torch lifting distance |
200mm |
|
Speed setting error |
≤±5% |
|
Running accuracy |
≤0.005mm |
|
High Control |
Are Pressure Auto THC |
|
Cutting gas |
Oxygen+ethyne(propane) |
|
Gas pressure |
0.4-0.8 Mpa |
|
Power |
Huayuan 200A |
|
Power Source |
220V/380V 50HZ |
|
Number of cutting torch |
One set of plasma cutting touch |
|
Support software |
Starcam, Fastcam. |
Machine Specification

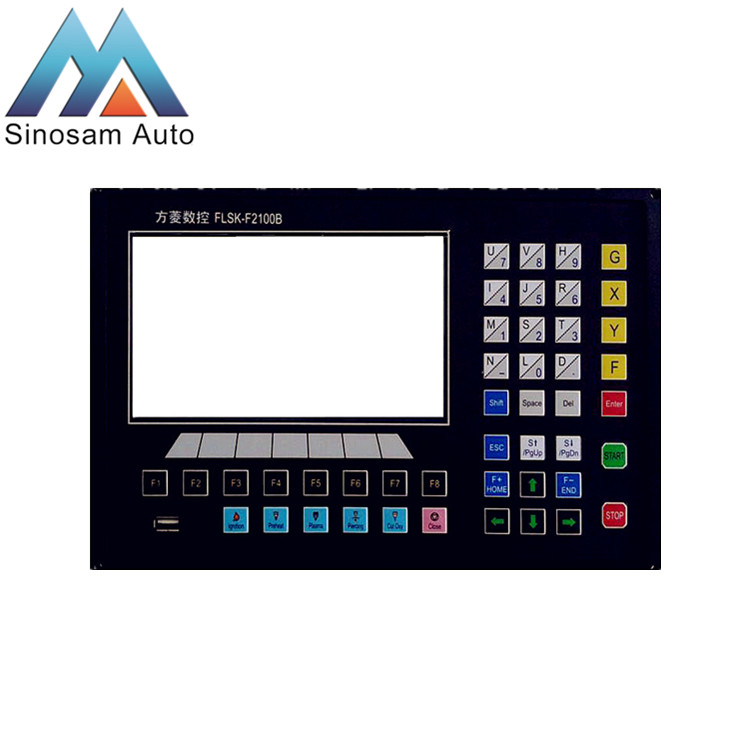

7 inch control screen. Easy operationg. (including English/Chinese)

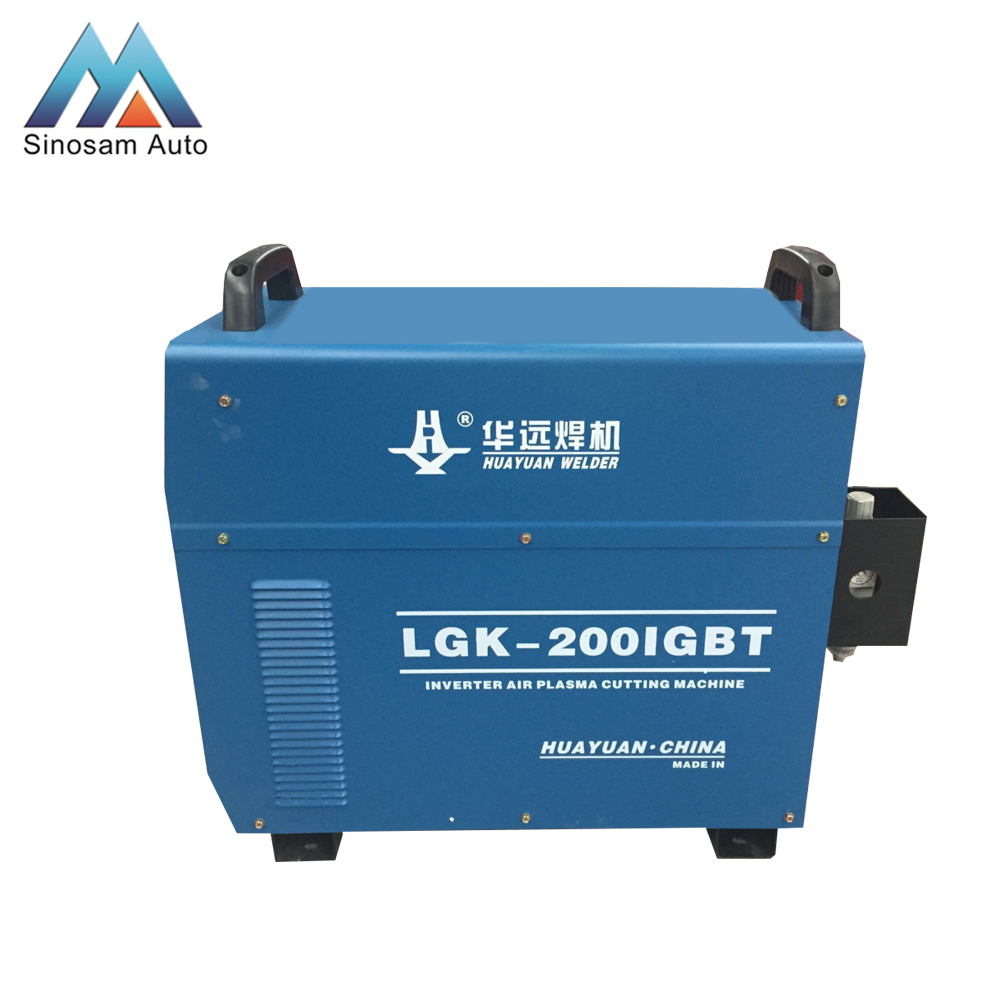

200A Power Assurance.

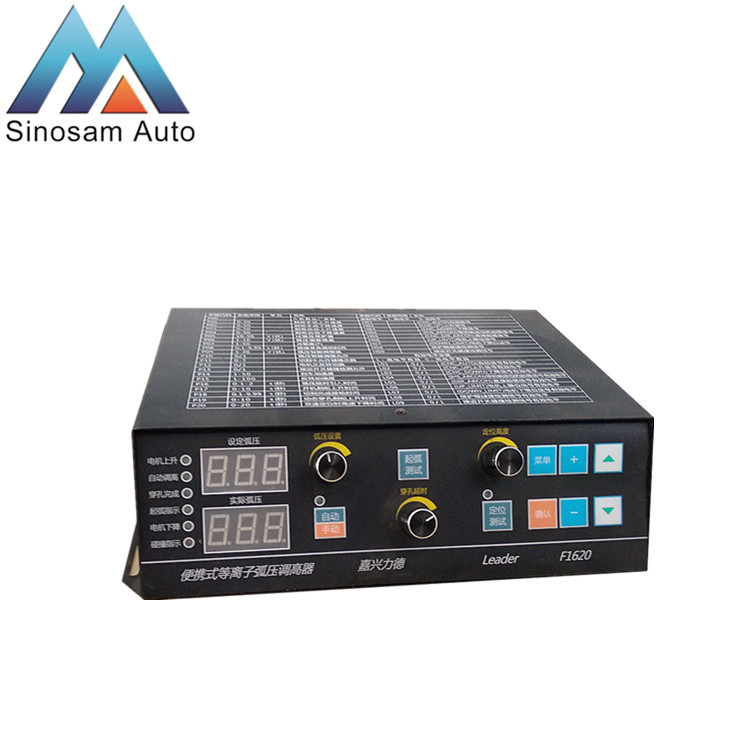

Are Pressure Auto THC
Components
|
No. |
Item |
Brand |
Brand Original |
|
(1) |
Motor |
Chinese brand |
China |
|
(2) |
plasma cutter |
Chinese brand |
China |
|
(3) |
Welding power supply |
HUAYUAN |
China |
|
(4) |
CNC system |
FANGLING |
China |
|
(5) |
Support software |
STARCAM/ FASTCAM. |
Italy |
|
(6) |
Other |
Chinese brand |
China |
Packaging
Our services
1. Free training.
2. Guarantee for 1 year, Lifelong maintenance.
3. Free software support and upgrades.
Company Information
Shandong Sam Automation Equipment Co.,Ltd.located in jinan city, shandong province. Sinosam is a collection research and development, production, sales, services, information consulting, which integrates professional high-tech enterprises.
specialized in the automation of the plant process. The main products are industrial robots, clean robots, intelligent logistics equipment, Agv automatic guided vehicles, rail transit equipment, intelligent service robots, automated assembly testing lines, energy-saving environmental protection equipment, energy equipment and machinery automation etc. Expect your good news.
FAQ
Q: How to install this machine?
A: It is easy to be installed, we have the video for your reference. and we can video online.
Q: What kind of delivery can you support?
A: FOB, CIF. EXW. and so on.
