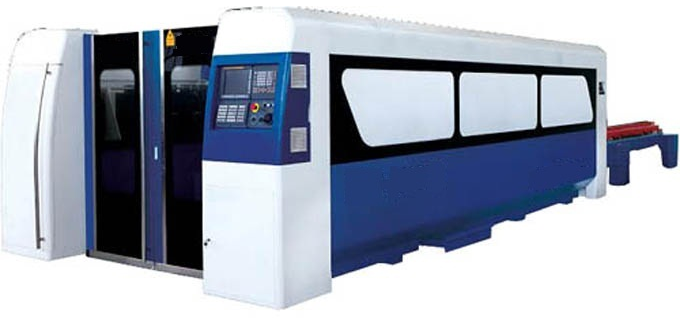

Laser cutting machine
- Brand: sinosam
- Type: SAM-GX1530
- Price: $102277 RMB
- Promotion: $98968 RMB ( 0 Customers Bought)
1. With double closed-loop displacement system architecture, equipped with imported open nc system, under the condition of high speed movement guarantee machining accuracy, high production efficiency.
2. The standard 500 w fiber laser, equipped with 300 w fiber laser, operation and maintenance cost is low.
3. The open architecture, close to sex good, convenient loading operation, the withdrawable type discharging device, receiving more convenient.
4. In view of the high speed movement requirements, design and manufacture of heavy-duty welding lathe bed, two aging treatment, ensure the precision and stability of the long run.
technical parameters
Laser type
Fiber Laser
Laser Power
500/300
Laser head
Laser mech
Working area
1500*3000mm( Can be customized)
Work table structure
Fixed work table
Control system
PMAC servo loop control
Position accuracy (mm)
0.05
Drive mode
Rack and pinion/screw
travel speed / processing speed (m/min)
48/24
Cooling system
Dual temperature control chiller
Protecting system
Open type
Software supported formats
PLT ,DXF
Power requirements
380V
Gross power
7.5/6-12KW
Floor area
5.6*3.2m
Other standared function
Metal typesetting software, three
dual-pressure gas line gas source, follow-up focus,handle,etc.
