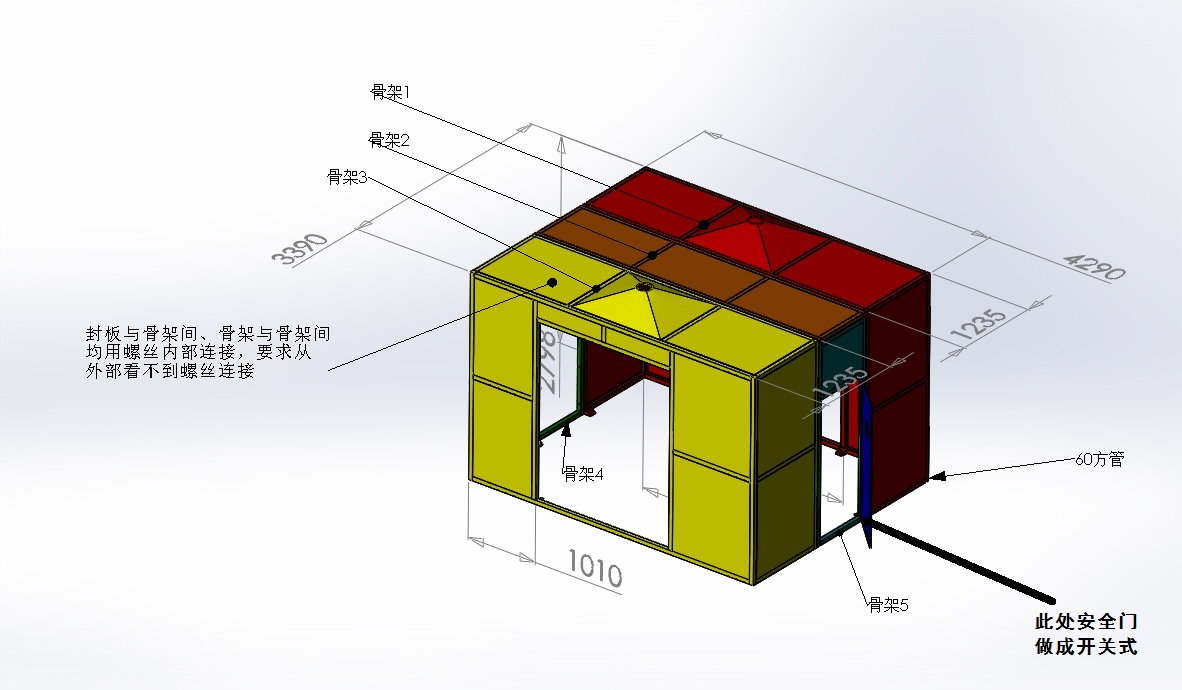

Welding robot workstation door systems
Several main effect:
Can communicate with the robot, fully automatic mode to open and close, to protect workers and machines, welding of harmful substances emitted by an isolation.
: 1. The hydrodynamic structure USES the high strength and oxidation resistance of industrial aluminum alloy guide rail, door head and motor cover is made of 2 mm cold steel plate, surface treated by high temperature powder coating;
2. Drive: quasi surface "tsubaki" imported from Japan high-speed frequency brake motor, more efficient, set 6 hz low frequency can reach the rated output torque.
More suitable for super large aperture output shaft diameter of 35 mm wide door too much weight, increase the operation process of drum tolerance;
3. The electrical control system: using Japan's mitsubishi inverter control element programming upgrade control function, with high performance, high reliability, high stability, high precision accurate positioning, etc. Using frequency conversion control technology at the same time, have a soft start, slow stop function, and ensure smooth operation increase the service life of the body at the door. Can communicate with robots. Aviation plug connection, convenient installation, debugging easy to understand;
4. Limit control: the rotary encoder, the overall debugging without having to climb the ladder, only can complete the whole door in place up and down on the ground motion positioning,
5. Open and close speed: open 1.0 1.5 m per second, closed 0.8 1.3 (speed adjustable). High frequency open (experimental earns 5760 times/day)
6. Safety devices: (1) the bottom of the curtain is equipped with airbags, door in the process of falling objects with slight collision can make the door stop and reverse the rise. (2) the lower part of doorcase infrared photoelectric protection switch pair is optional, stay under the door person and object photoelectric, blocking door does not fall;
7. The curtain: the French of imported industrial polyester fiber cloth 1.2 mm - 2 mm Vicky, high-strength polyester fiber, environmental protection double PVC coating, fire protection standard (France imported PVC) base fabric with non-toxic, good self-cleaning surface.
8. Optional brand special welding shield door cloth body as the observation window, convenient for observation content work, guarantee the operation safe.
